Driver's Airbag Module: Removal

CAUTION: Refer to "CAUTION" of "General Description" before handling the airbag module. <Ref. to CAUTION , General Description.>

Position the front wheels straight ahead.
Turn the ignition switch to OFF.
Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. <Ref. to BATTERY , NOTE, Note.>
NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
Remove the driver's airbag module.
1. Using a hexagon wrench etc. wrapped by protective tape, insert the snap pins and release the locks (3 locations).

  Fig 1: Removing Driver Airbag Module
  Courtesy of SUBARU OF AMERICA, INC.
2. Disconnect the horn harness and airbag connector, and remove the driver's airbag module. <Ref. to DRIVER'S AIRBAG MODULE, CURTAIN AIRBAG MODULE & PRETENSIONER , PROCEDURE, Airbag Connector.>

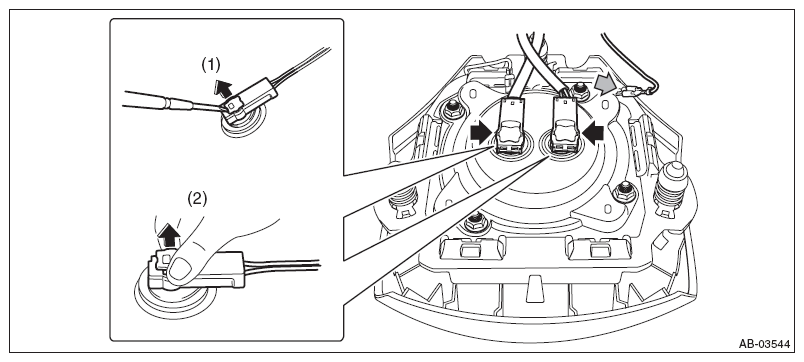

  Fig 2: Removing Driver Airbag Module
  Courtesy of SUBARU OF AMERICA, INC.
