Operating Cylinder: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the intercooler. <Ref. to REMOVAL , Intercooler.> <Ref. to REMOVAL , Intercooler.>
Disconnect the clutch hose from the operating cylinder.
CAUTION:
- Cover the hose joint to prevent the clutch fluid from flowing out.
- Do not loosen or remove the cap bolts.
- STI model

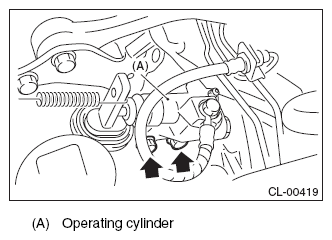

  Fig 1: Identifying Clutch Hose, Operating Cylinder And Cap Bolt - STI Model
  Courtesy of SUBARU OF AMERICA, INC.
- Except for STI model
Fig 2: Identifying Clutch Hose, Operating Cylinder And Cap Bolt - Except For STI Model
Courtesy of SUBARU OF AMERICA, INC.
Remove the operating cylinder from the transmission.
- STI model

  Fig 3: Locating Operating Cylinder Mounting Bolts - STI Model
  Courtesy of SUBARU OF AMERICA, INC.
- Except for STI model

  Fig 4: Locating Operating Cylinder Mounting Bolts - Except For STI Model
  Courtesy of SUBARU OF AMERICA, INC.
