Clutch Pedal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground cable from battery. <Ref. to BATTERY , NOTE, Note.>
    NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
  2. Remove the steering column. <Ref. to REMOVAL , Steering Column.>
  3. Disconnect the connector from the stop light switch and clutch switch.
  4. Remove the snap pins from clevis pins which secure the lever to the push rod and operating rod.
  5. Pull out the clevis pins which secures the lever to the push rod and operating rod.

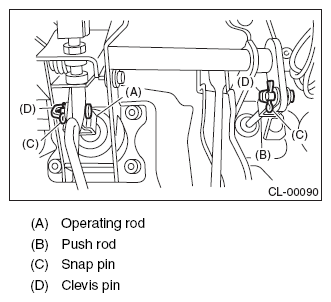

    Fig 1: Identifying Operating Rod, Push Rod, Snap Pin, Clevis Pin
    G10269360Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the intercooler.

    <Ref. to REMOVAL , Intercooler.>

    <Ref. to REMOVAL , Intercooler.>

  7. Remove the nut which secures the clutch master cylinder.
    Fig 2: Identifying Clutch Master Cylinder Nut
    G10269361Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the bolts and nuts which secure the brake pedal and clutch pedal, and remove the pedal assembly.
