Clutch Disc and Cover: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly from the vehicle. <Ref. to REMOVAL , Manual Transmission Assembly.> <Ref. to REMOVAL , Manual Transmission Assembly.>
  2. Attach the ST on the flywheel.

    ST 499747100 CLUTCH DISC GUIDE

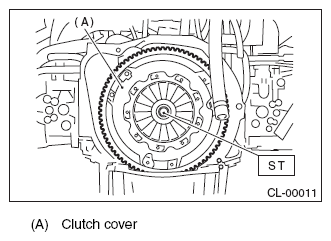

    Fig 1: Attaching ST On Flywheel
    G10269301Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the clutch cover and clutch disc.
    NOTE:
    • Take care not to allow oil to touch the clutch disc face.
    • Do not disassemble the clutch cover or clutch disc.
