Chamber Assembly: Removal: Hose

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the hose (front).
    NOTE: Be careful not to damage the grommet.

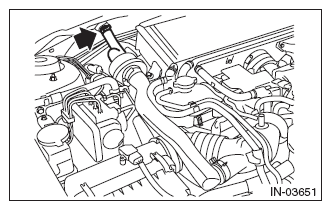

    Fig 1: Locating Grommet
    G10265182Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the cowl panel. <Ref. to REMOVAL , Cowl Panel.>
  3. Remove clip (A), and remove the hose (rear).
    NOTE: Be careful not to damage the grommet.
    Fig 2: Locating Grommet
    G10265183Courtesy of SUBARU OF AMERICA, INC.
