Air Cleaner Element: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground cable from battery.
  2. Remove the air intake duct. <Ref. to REMOVAL , Air Intake Duct.>
  3. Remove the air flow and intake air temperature sensor harness (A) from the air cleaner case (front).
  4. Remove the clips (B) from the air cleaner case (front).

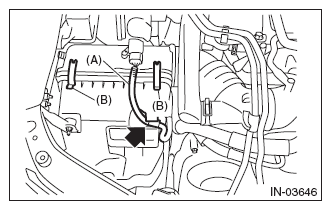

    Fig 1: Locating Air Cleaner Case (Front) Clips
    G10265120Courtesy of SUBARU OF AMERICA, INC.
  5. Open the air cleaner case, and remove the air cleaner element.

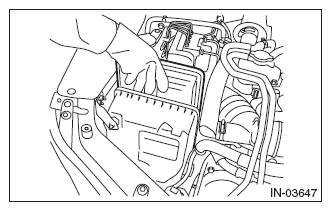

    Fig 2: Removing Air Cleaner Element
    G10265121Courtesy of SUBARU OF AMERICA, INC.
