Air Cleaner Case: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground cable from battery.
  2. Remove the air intake duct. <Ref. to REMOVAL , Air Intake Duct.>
  3. Remove the chamber assembly. <Ref. to REMOVAL , Chamber Assembly.>
  4. Disconnect the connector (A) from air flow and intake air temperature sensor.
  5. Loosen the clamp (B) which holds the air intake boot.
  6. Remove the clip (C) from the air cleaner case (front).

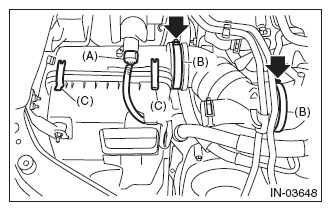

    Fig 1: Locating Air Intake Boot Clamps
    G10265123Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the air cleaner case (rear) and air intake boot.
  8. Remove the air cleaner element.
  9. Remove bolts (A) and nuts (B) which secure the air cleaner case (front) to the body and air cleaner case bracket, and remove the air cleaner case (front).
    Fig 2: Identifying Air Cleaner Case Bolts And Nuts
    G10265124Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the air cleaner case bracket from the vehicle.
    Fig 3: Locating Air Cleaner Case Bracket Bolts
    G10265125Courtesy of SUBARU OF AMERICA, INC.
