Air Cleaner Case: Installation

WARNING: This page is about a different variant/trim than selected.

Install the air cleaner case bracket to the vehicle.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 1: Locating Air Cleaner Case Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the bolt (A) and nut (B) which secure the air cleaner case (front) to the vehicle and to the air cleaner case bracket.
Tightening torque:

Bolt (A)

6 N.m (0.6 kgf-m, 4.4 ft-lb)

Nut (B)

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

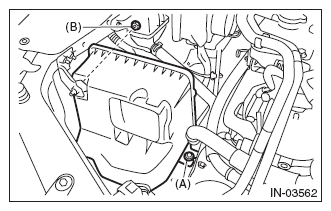

Fig 2: Identifying Air Cleaner Case Bolts And Nuts
Courtesy of SUBARU OF AMERICA, INC.
Set the air cleaner element and air cleaner case (rear) to the air cleaner case (front).
NOTE: When setting the air cleaner case (rear), align the protrusion of the air cleaner case (rear) to the air cleaner case (front) to insert.

Fig 3: Identifying Air Cleaner Case
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake boot.
Tightening torque:

2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Fig 4: Locating Air Intake Boots
Courtesy of SUBARU OF AMERICA, INC.
Install the clip (B) to the air cleaner case (front).
Connect the connector (A) to the mass air flow and intake air temperature sensor.

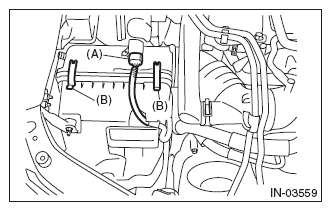

Fig 5: Identifying Mass Air Flow And Intake Air Temperature Sensor Connectors
Courtesy of SUBARU OF AMERICA, INC.
Install the chamber assembly. <Ref. to INSTALLATION , Chamber Assembly.>
Install the air intake duct. <Ref. to INSTALLATION , Air Intake Duct.>
Connect the battery ground terminal.
