Secondary Air Combination Valve LH

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground cable from battery.
  2. Remove the intercooler. <Ref. to REMOVAL , Intercooler.>
  3. Disconnect the connector from the secondary air combination valve LH.
  4. Disconnect the air duct A.
  5. Remove the secondary air pipe LH.
  6. Remove the secondary air combination valve LH.

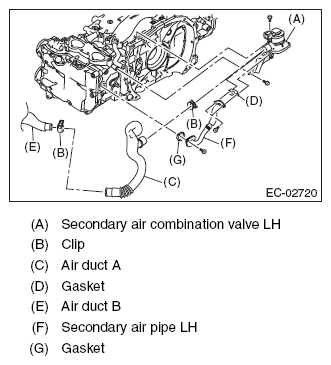

    Fig 1: Removing Secondary Air Combination Valve LH
    G10265104Courtesy of SUBARU OF AMERICA, INC.
