Purge Control Solenoid Valve 2

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground cable from battery.
  2. Disconnect connector (A), vacuum hose (B), and vacuum control hose (C) from purge control solenoid valve 2.
  3. Remove purge control solenoid valve 2 from the solenoid valve bracket.

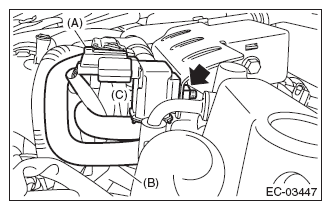

    Fig 1: Locating Vacuum Control Hose From Purge Control Solenoid Valve 2
    G10265028Courtesy of SUBARU OF AMERICA, INC.
