Leak Check Valve Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the connector (A) from the leak check valve assembly.
  2. Remove the bolt (B) securing the leak check valve assembly to the leak check valve bracket.
  3. Remove the clamp B (C) which secures the leak check valve assembly, and remove the leak check valve assembly.
    Fig 1: Disconnecting Connector From Leak Check Valve Assembly
    G10265071Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the harness (A) from the leak check valve bracket.
  5. Rotate the clamp A (B) in the direction of the arrow and remove it from the leak check valve bracket.

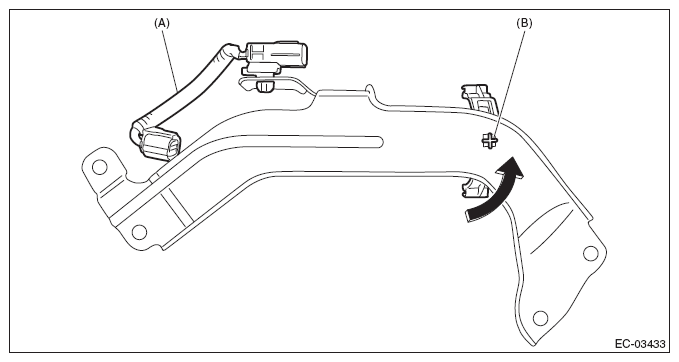

    Fig 2: Rotating Clamp A
    G10265072Courtesy of SUBARU OF AMERICA, INC.
