Section 5 (Emission Control Systems (Aux. Emission Control Devices) (STI)): Canister: Installation

WARNING: This page is about a different variant/trim than selected.

Move it in the direction of the arrow and install the canister bracket B (A) and canister bracket C (B) to the canister.
NOTE:
- Use a new canister and a canister bracket.
- Check that the claw (a) is securely tightened.
Fig 1: Identifying Canister Bracket And Claw
Courtesy of SUBARU OF AMERICA, INC.
Connect the vent tube (B) to the canister and remove the canister bracket A (A).
CAUTION:
- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- Make sure that the quick connector is securely connected.
NOTE: Install the quick connector as shown in the figure.

Fig 2: Installing Quick Connector
Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Identifying Vent Tube To Canister
Courtesy of SUBARU OF AMERICA, INC.
Set the canister to the vehicle, and attach the bolts and clip (A) which secure the canister.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 4: Locating Canister Bolts And Clip
Courtesy of SUBARU OF AMERICA, INC.
Correctly insert the fuel filler hose to the spool, and then install the clamp as shown.
Tightening torque:

2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Fig 5: Locating Clamp
Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Identifying Fuel Filler Hose Clamp Dimension
Courtesy of SUBARU OF AMERICA, INC.
Install the tube clamp to the canister bracket A, and install the drain tube to the tube clamp.

Fig 7: Locating Tube Clamp To Canister Bracket
Courtesy of SUBARU OF AMERICA, INC.
Connect the drain tube (A) and purge tube (B) to the canister.
CAUTION:
- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- Make sure that the quick connector is securely connected.
NOTE: Install the quick connector as shown in the figure.

Fig 8: Installing Quick Connector
Courtesy of SUBARU OF AMERICA, INC.

Fig 9: Identifying Drain Tube And Purge Tube
Courtesy of SUBARU OF AMERICA, INC.
Connect the vent tube to the vent hose.

Fig 10: Locating Vent Tube To Vent Hose
Courtesy of SUBARU OF AMERICA, INC.
Lift up the transmission jack gradually, and set the rear differential to the rear sub frame assembly.
NOTE: When inserting the stud bolt into the bushing portion of the rear sub frame assembly, adjust the angle and location of transmission jack and jack stand.

Fig 11: Inserting Stud Bolt Into Bushing Portion Of Rear Sub Frame Assembly
Courtesy of SUBARU OF AMERICA, INC.
Temporarily tighten the self-locking nuts which hold the rear differential to the rear sub frame assembly.
NOTE: Use a new self-locking nut.

Fig 12: Locating Self-Locking Nuts
Courtesy of SUBARU OF AMERICA, INC.
Set the rear differential member to the rear sub frame assembly and rear differential, and temporarily tighten the self-lock nuts which secure the rear differential member to the rear sub frame assembly and rear differential.
NOTE: Use a new self-locking nut.

Fig 13: Locating Self-Lock Nuts
Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission jack from the rear differential.
Tighten the self-locking nuts which secure the rear differential member to the rear sub frame assembly and rear differential.
Tightening torque:

T1: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

T2: 110 N.m (11.2 kgf-m, 81.1 ft-lb)

Fig 14: Identifying Self-Locking Nuts
Courtesy of SUBARU OF AMERICA, INC.
Tighten the self-locking nuts which secure the rear differential to the rear sub frame assembly.
Tightening torque:

70 N.m (7.1 kgf-m, 51.6 ft-lb)

Fig 15: Locating Self-Locking Nuts
Courtesy of SUBARU OF AMERICA, INC.

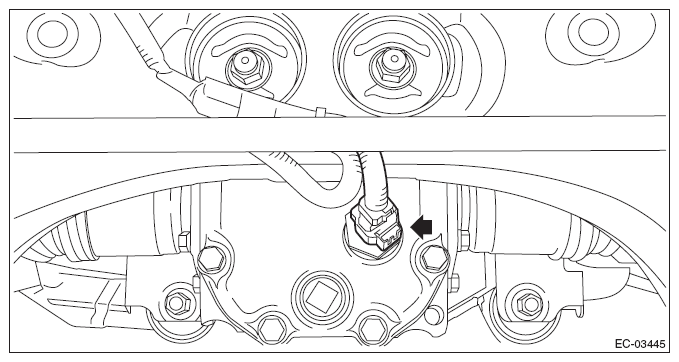

Connect the connector to the oil temperature sensor.

Fig 16: Locating Connector To Oil Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.
Install the propeller shaft. <Ref. to INSTALLATION , Propeller Shaft.>
Install the rear exhaust pipe. <Ref. to INSTALLATION , Rear Exhaust Pipe.>
Lower the vehicle.
Connect the ground terminal to the battery.
