Front Side Belt

WARNING: This page is about a different variant/trim than selected.
  1. Remove the V-belt covers.
    Fig 1: Locating V-Belt Cover
    G06344549Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the air intake duct. <Ref. to REMOVAL , Air Intake Duct.>
  3. Loosen the bolt (A).
  4. Loosen the slider bolt (B).
  5. Remove the front side belt (C).

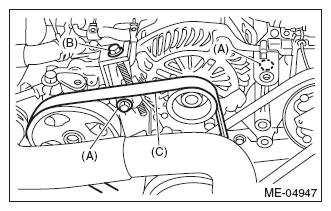

    Fig 2: Identifying Front Side Belt Slider Bolt
    G08539221Courtesy of SUBARU OF AMERICA, INC.
