Automatic Belt Tension Adjuster Assembly And Belt Idler

WARNING: This page is about a different variant/trim than selected.
  1. Remove the belt idler (A) and (B).

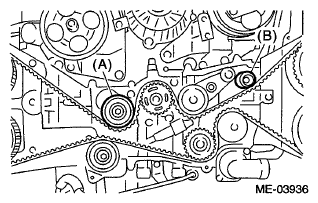

    Fig 1: Identifying Belt Idlers
    G06335457Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the belt idler No. 2.
    Fig 2: Locating Belt Idler
    G07911953Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the automatic belt tension adjuster assembly.
Fig 3: Locating Automatic Belt Tension Adjuster
G07911954Courtesy of SUBARU OF AMERICA, INC.
