Cylinder Head And Valve Assembly
Cylinder Head And Valve Assembly
WARNING:
This page is about a different variant/trim than selected.

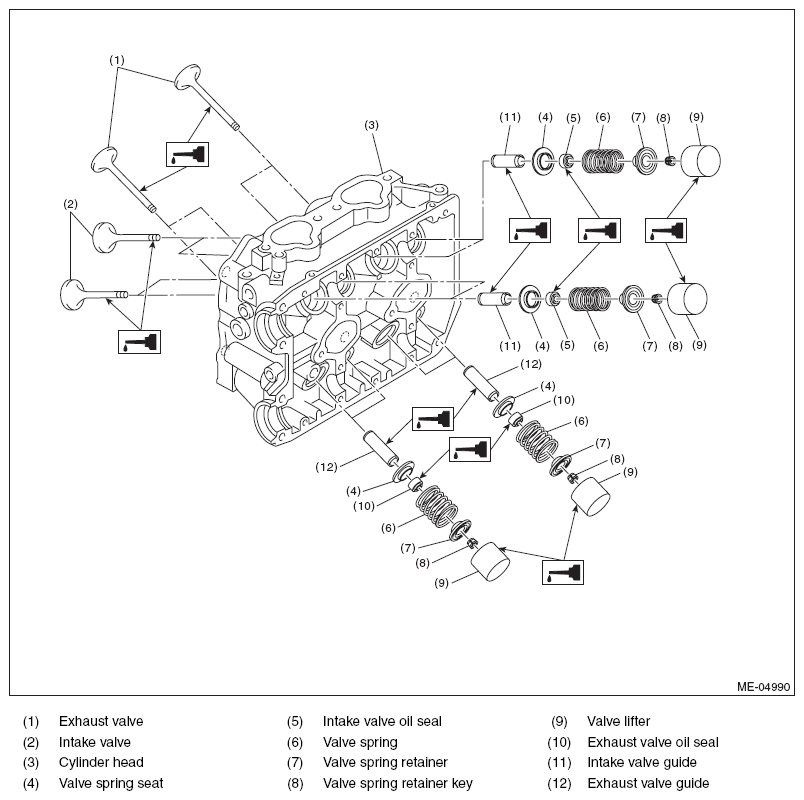

Fig 1: Exploded View Of Cylinder Head And Valve Assembly
Courtesy of SUBARU OF AMERICA, INC.
