Crankshaft And Piston

WARNING: This page is about a different variant/trim than selected.

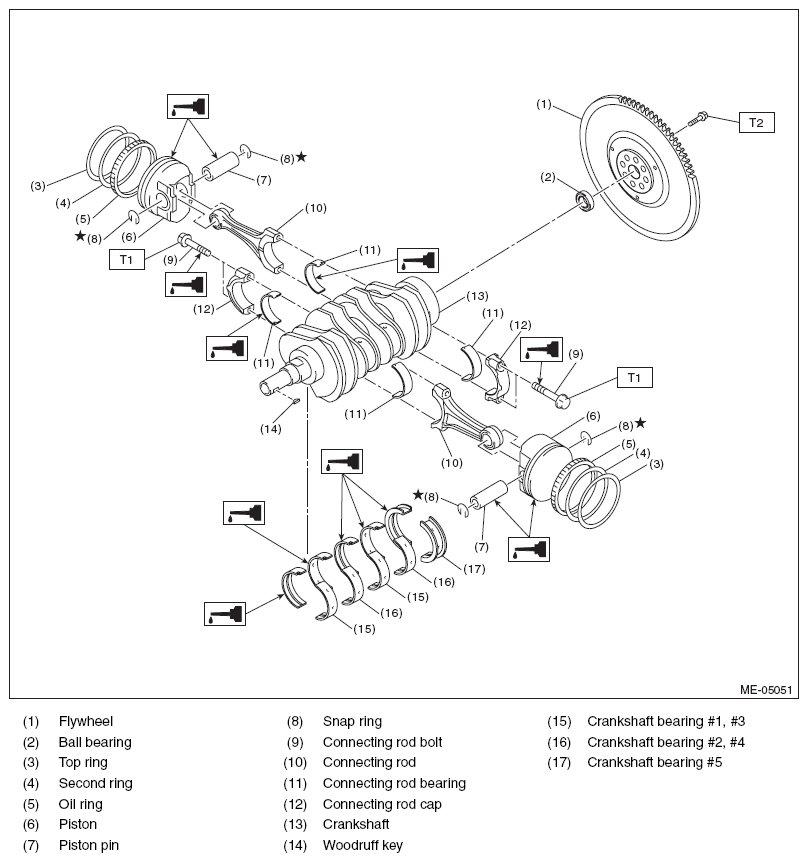

Fig 1: Exploded View Of Crankshaft And Piston With Torque Specifications
G10265198Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 52 (5.3, 38.4)

T2: <Ref. to  INSTALLATION  , Flywheel.>
