Back-Up Light And Neutral Position Switch

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground cable from battery. <Ref. to BATTERY , NOTE, Note.>
  2. Remove the collector cover. <Ref. to REMOVAL , Collector Cover.>
  3. Remove the intercooler. <Ref. to REMOVAL , Intercooler.>
  4. Disconnect the connector back-up light switch & neutral position switch.

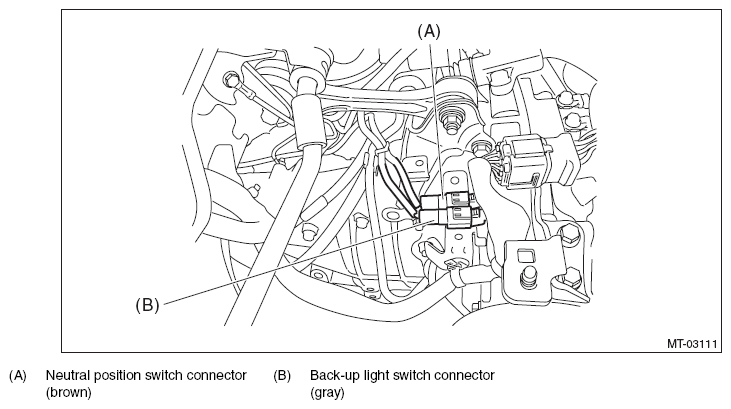

    Fig 1: Identifying Back-Up Light And Neutral Position Switch Connectors
    G10268659Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the harness connector from bracket.
  6. Lift up the vehicle.
  7. Remove the harness from each clip.
  8. Remove the back-up light switch & neutral position switch with the harness.

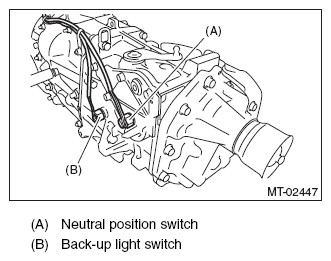

    Fig 2: Identifying Back-Up Light Switch & Neutral Position Switch With Harness
    G10268660Courtesy of SUBARU OF AMERICA, INC.
