Back-Up Light And Neutral Position Switch

WARNING: This page is about a different variant/trim than selected.
  1. Install the back-up light switch & neutral position switch with the harness.
    NOTE: Use a new gasket.

    Tightening torque:

    32.3 N.m (3.3 kgf-m, 23.8 ft-lb)

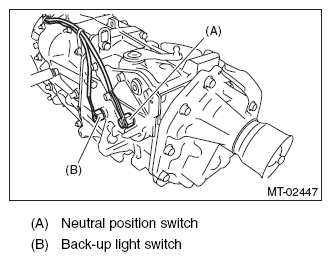

    Fig 1: Identifying Back-Up Light Switch & Neutral Position Switch With Harness
    G10268661Courtesy of SUBARU OF AMERICA, INC.
  2. Secure the harness on each clip.
  3. Lower the vehicle.
  4. Install the harness connector to the bracket.
  5. Connect the connectors of back-up light switch & neutral position switch.
  6. Install the intercooler. <Ref. to INSTALLATION , Intercooler.>
  7. Install the collector cover. <Ref. to INSTALLATION , Collector Cover.>
  8. Connect the battery ground terminal. <Ref. to BATTERY , NOTE, Note.>
