Drive Pinion Shaft Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual transmission assembly from the vehicle. <Ref. to REMOVAL , Manual Transmission Assembly.>
  2. Remove the transfer case together with the extension case assembly. <Ref. to REMOVAL , Transfer Case and Extension Case Assembly.>
  3. Remove the transmission case. <Ref. to REMOVAL , Transmission Case.>
  4. Remove the drive pinion shaft assembly.
    NOTE: Use a hammer handle, etc. to remove if too tight.

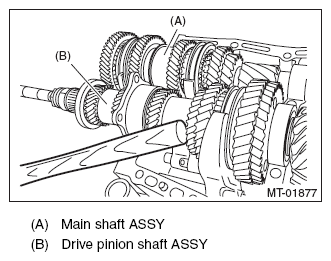

    Fig 1: Removing Drive Pinion Shaft Assembly
    G10268785Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the main shaft assembly.
