Air Breather Hose: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

NOTE:

When installing the air breather hose, pay attention to the positions of the two markings on the hose and make sure the markings come to the same position as when removed.
Securely insert the air breather hose until the hose end contacts the catch of the pitching stopper bracket.

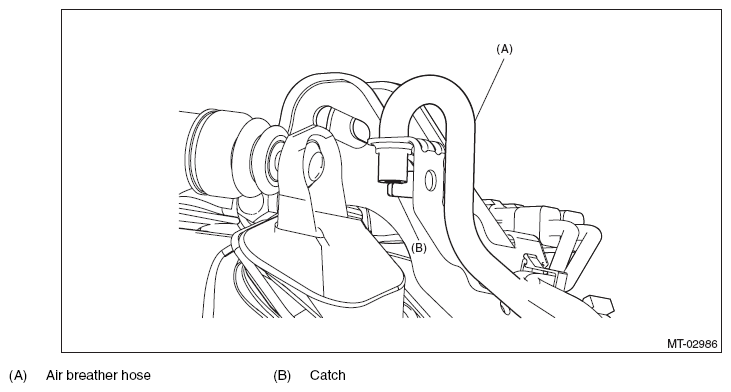

Fig 1: Identifying Air Breather Hose And Catch

Courtesy of SUBARU OF AMERICA, INC.
