Transmission Gear Oil: Inspection

WARNING: This page is about a different variant/trim than selected.

Lift up the vehicle.
Remove the transmission under cover.
Remove the filler plug.

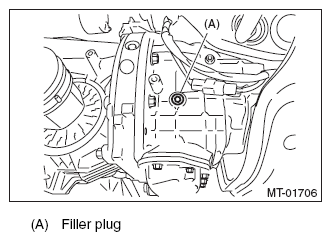

Fig 1: Identifying Filler Plug
Courtesy of SUBARU OF AMERICA, INC.
Check that the transmission gear oil level is up to the bottom of the filler plug. If the transmission gear oil level is low, confirm that there is no oil leakage and refill up to the bottom of filler plug.
Using a new gasket, and tighten the filler plug.
Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)
