Transmission Case: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission harness from the transmission case.
    NOTE: Remove the connector by disengaging the connector claw from the inside of the transmission.

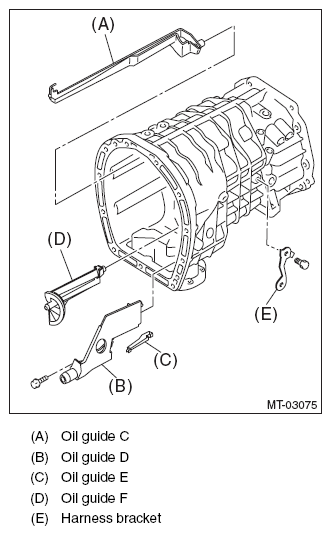

  2. Remove the oil guides C, D, E, F and harness bracket.
    Fig 1: Removing Oil Guides And Harness Bracket
    G10269067Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the oil pan.
    Fig 2: Removing Oil Pan
    G06345984Courtesy of SUBARU OF AMERICA, INC.
  4. Remove any remaining liquid gasket from the transmission case and oil pan.
