Transmission Case: Assembly

WARNING: This page is about a different variant/trim than selected.

Apply liquid gasket to the oil pan.
Liquid gasket:

THREE BOND 1215B or equivalent

Fig 1: Identifying Liquid Gasket Applying Area To Oil Pan
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pan.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
Install the oil guides C, D, E, F and harness bracket.
Tightening torque:

T1: 16 N.m (1.6 kgf-m, 11.8 ft-lb)

T2: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

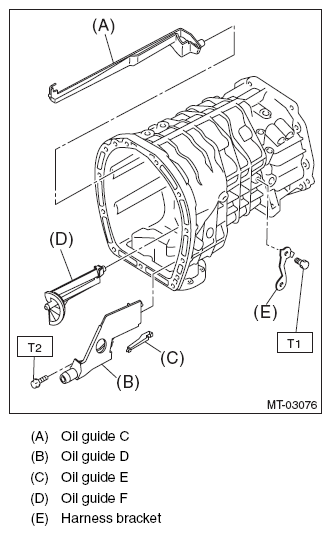

Fig 2: Installing Oil Guides And Harness Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission harness to the transmission.
NOTE: Install the transmission harness connector by aligning the protrusions of the transmission and transmission harness connector.

Fig 3: Identifying Transmission Harness Connectors And Protrusion
Courtesy of SUBARU OF AMERICA, INC.
