Reverse Check System: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the manual transmission assembly from the vehicle. <Ref. to REMOVAL , Manual Transmission Assembly.>
Prepare the transmission for overhaul. <Ref. to PREPARATION FOR OVERHAUL .>
Remove the extension case. <Ref. to REMOVAL , Extension Case.>
Remove the snap ring and washer from the reverse check shaft.

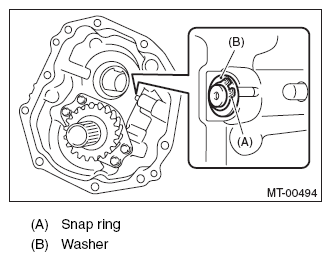

Fig 1: Removing Snap Ring And Washer From Reverse Check Shaft
Courtesy of SUBARU OF AMERICA, INC.
Remove the reverse check shaft and spring from the extension case.

Fig 2: Removing Reverse Check Shaft And Spring From Extension Case
Courtesy of SUBARU OF AMERICA, INC.
Remove the straight pin, and remove the reverse check lever and oil seal from the reverse check shaft.

Fig 3: Removing Reverse Check Lever And Oil Seal From Reverse Check Shaft
Courtesy of SUBARU OF AMERICA, INC.
Remove the plug from the extension case, and remove the gasket, spring and reverse check plunger.

Fig 4: Removing Plug From Extension Case
Courtesy of SUBARU OF AMERICA, INC.
Remove the reverse lock plunger.

Fig 5: Removing Reverse Lock Plunger

Courtesy of SUBARU OF AMERICA, INC.
