Neutral Position Switch: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual transmission assembly from the vehicle. <Ref. to REMOVAL , Manual Transmission Assembly.>
  2. Disconnect the connector and clip of the neutral position switch.

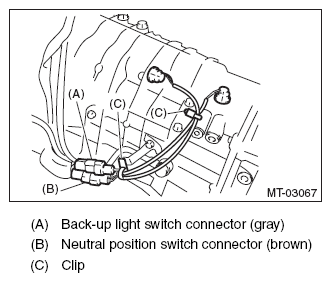

    Fig 1: Disconnecting Connector And Clip Of Neutral Position Switch
    G10268998Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the neutral position switch.

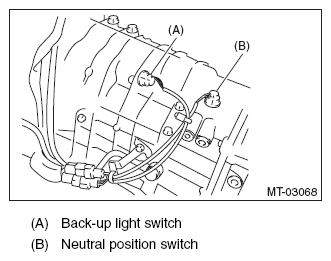

Fig 2: Removing Neutral Position Switch
G10268999Courtesy of SUBARU OF AMERICA, INC.
