Neutral Position Switch: Inspection
WARNING: This page is about a different variant/trim than selected.
- Disconnect the ground cable from battery.
- Remove the intercooler. <Ref. to REMOVAL , Intercooler.>

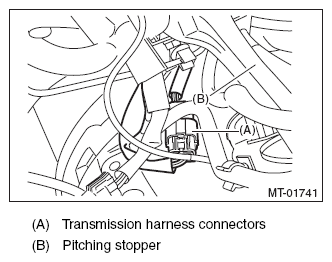

- Disconnect the transmission harness and chassis harness.
- Measure the resistance between neutral position switch terminals. If not within the standard values, replace the neutral position switch.
| Gear shift position | Terminal No. | Standard |
|---|---|---|
| Neutral position | 2 and 5 | Less than 1 Ω |
| Other positions | 1 MΩ or more |
