Main Shaft Snap Ring & Adjusting Washer Selection
WARNING: This page is about a different variant/trim than selected.
NOTE:
In the following conditions, perform the procedures below.
- 1st to 6th driven gear replacement
- 1st and 2nd synchro ring assembly replacement
- Ball bearing replacement
- Adapter plate replacement
- Driven shaft replacement
- Insert the drive pinion assembly into the adapter plate.NOTE: Confirm that the thrust bearing outer race has not been removed and the drive pinion is not lifted.
- Set the height gauge to the adapter plate. Lower the height gauge indicator to the mating surface of the adapter plate and case, and set to zero points.
ST 18853AA000 HEIGHT GAUGE
NOTE:- The adapter plate will be the base point for the measurement. Use a scraper to remove any gasket material remaining on the end face.
- During measurement, do not place the height gauge in the shaded area shown in the figure.

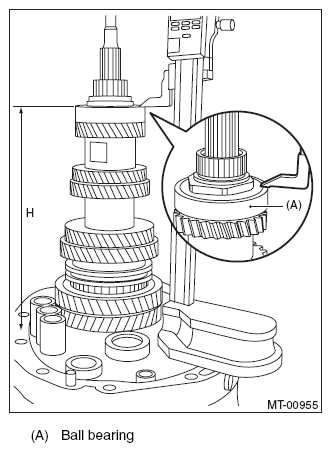

- Measure the height to the ball bearing end face (height H).
NOTE: Set the height gauge indicator near the measurement target, and lock dial (1) as shown in the figure. Turn dial (2), and set the indicator to the end face of the bearing.
Turn approximately 120° at a time, and measure the ball bearing in 5 locations. Round down the 2 highest and 2 lowest measurement values. The remaining center value is used as the measurement value.
- According to the measurement value, select the snap ring and adjusting washer from the following table.
| Snap ring | ||
|---|---|---|
| H: mm (in) | Part No. | Thickness: mm (in) |
| 270.83 - 271.40 (10.66 - 10.69) | 805072010 | 1.65 (0.065) |
| 271.41 - 271.98 (10.69 - 10.71) | 805072011 | 1.95 (0.077) |
| 271.99 - 272.56 (10.71 - 10.73) | 805072012 | 2.25 (0.089) |
| Adjusting washer | ||
|---|---|---|
| H: mm (in) | Part No. | Thickness: mm (in) |
| 270.83 - 271.40 (10.66 - 10.69) | 803067012 | 1.6 (0.063) |
| 271.41 - 271.98 (10.69 - 10.71) | 803067011 | 1.3 (0.051) |
| 271.99 - 272.56 (10.71 - 10.73) | 803067010 | 1.0 (0.039) |
