Section 13 (Manual Transaxle & Differential (TY85) (STI))
>>
General Description
>>
Components With Torque Specifications
>>
Shifter Fork And Fork Rod
Shifter Fork And Fork Rod
WARNING:
This page is about a different variant/trim than selected.

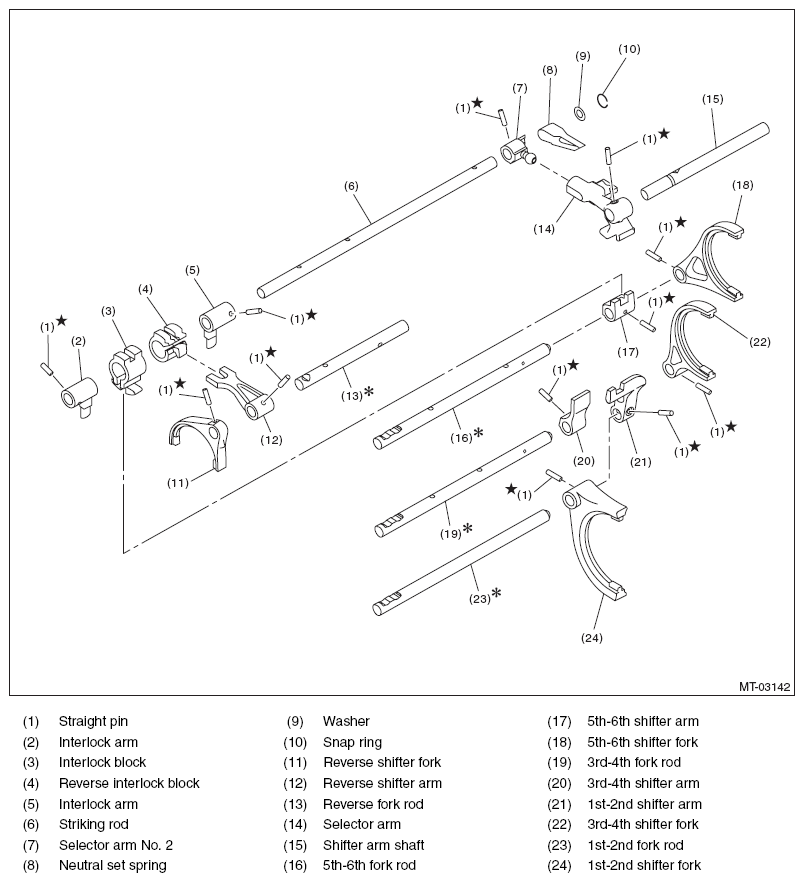

Fig 1: Exploded View Of Shifter Fork And Fork Rod
Courtesy of SUBARU OF AMERICA, INC.
