Reverse Idler Gear ASSY

WARNING: This page is about a different variant/trim than selected.

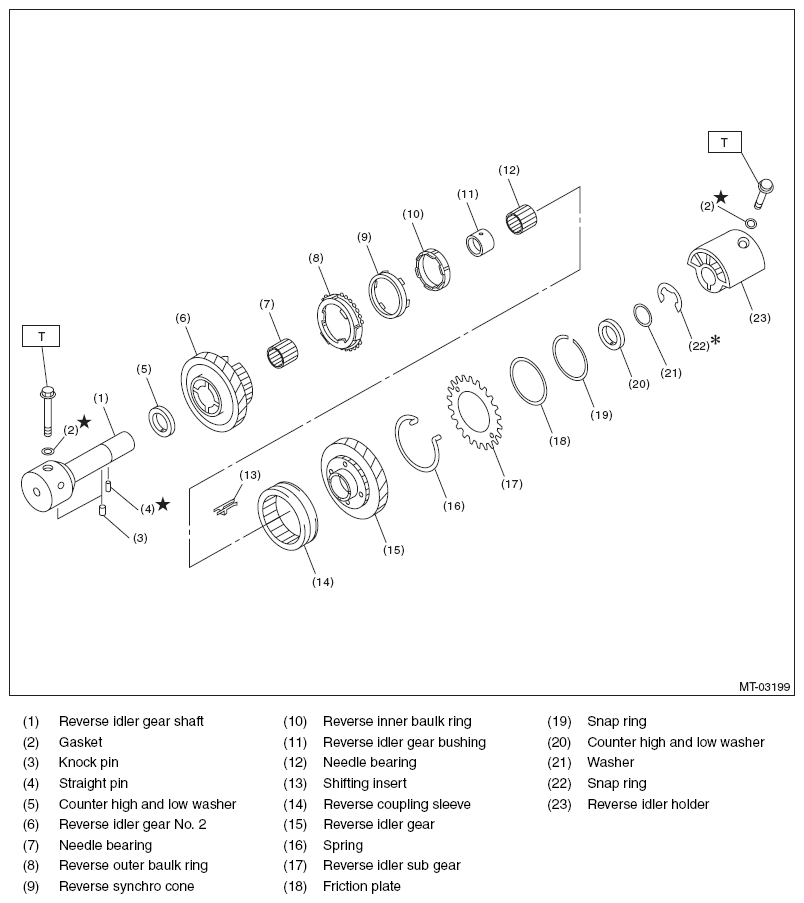

Fig 1: Exploded View Of Reverse Idler Gear Assembly
G10268902Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 25 (2.5, 18.4)
