Drive Pinion Shaft ASSY & Driven Gear ASSY

WARNING: This page is about a different variant/trim than selected.

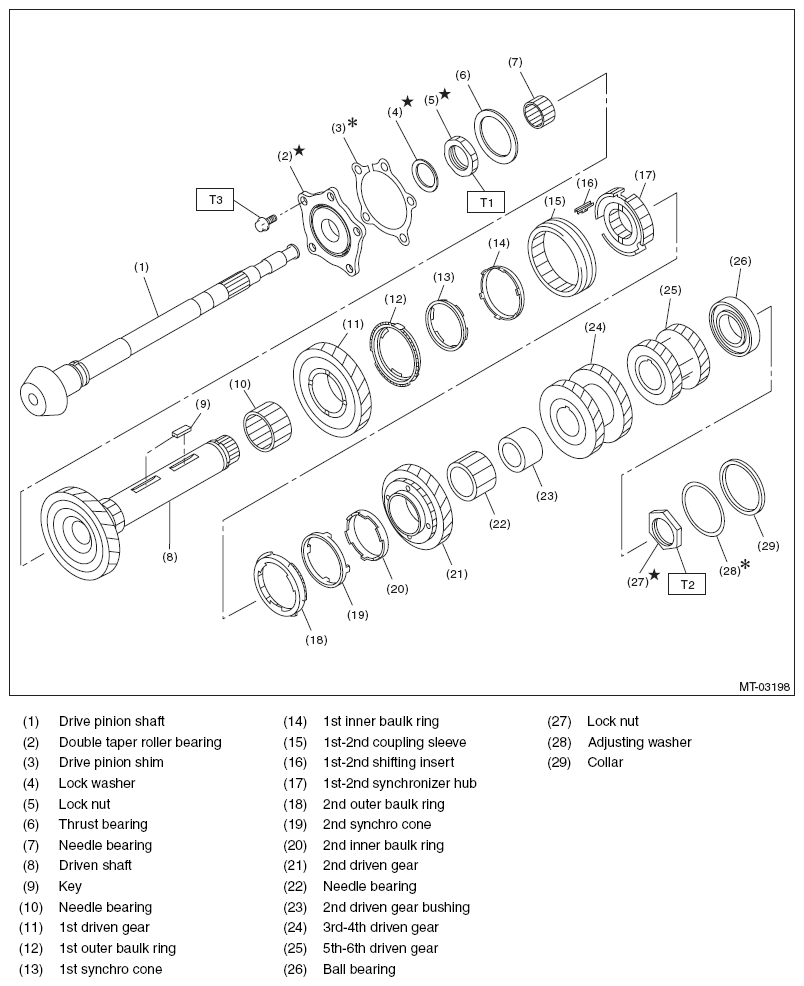

Fig 1: Exploded View Of Drive Pinion Shaft Assembly & Driven Gear Assembly

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 285 (29.1, 210.2)

*265 (27.0, 195.4)

T2: 570 (58.1, 420.4)

*530 (54.0, 390.9)

T3: 54 (5.5, 39.8)

* Tightening torque when using the ST
