Clutch Housing

WARNING: This page is about a different variant/trim than selected.

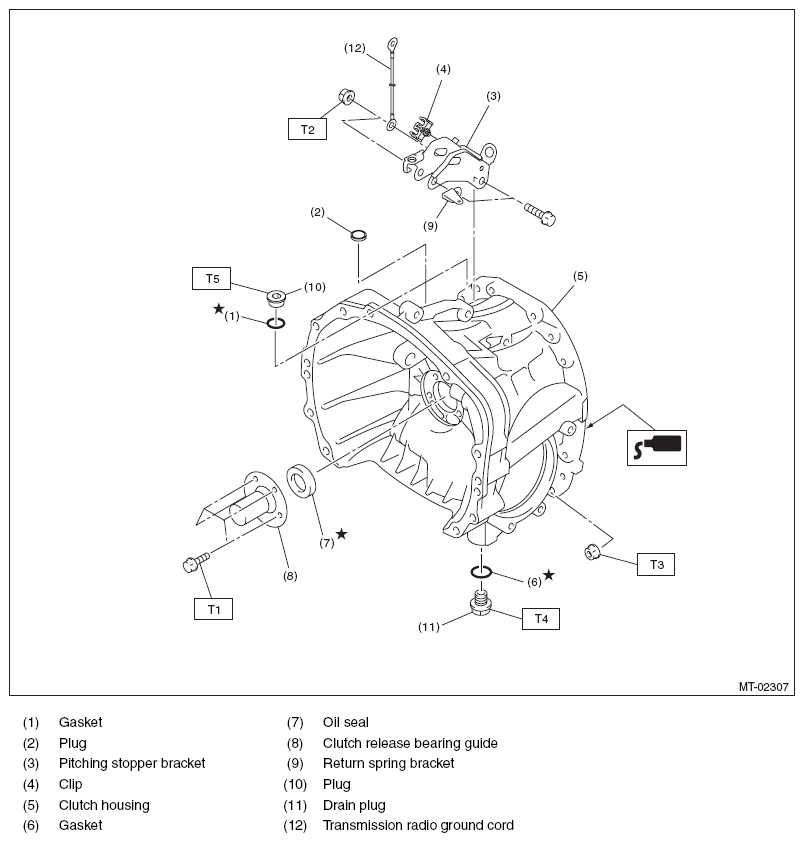

Fig 1: Exploded View Of Clutch Housing

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 41 (4.2, 30.2)

T3: 50 (5.1, 36.9)

T4: 70 (7.1, 51.6)

T5: 46 (4.7, 33.9)
