Back-up Light Switch: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual transmission assembly from the vehicle. <Ref. to REMOVAL , Manual Transmission Assembly.>
  2. Disconnect the back-up light switch connector.

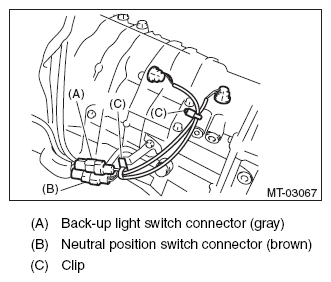

    Fig 1: Disconnecting Back-Up Light Switch Connector
    G10268994Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the back-up light switch.

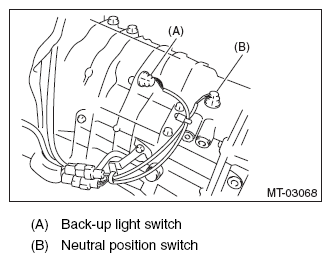

Fig 2: Disconnecting Back-Up Light Switch
G10268995Courtesy of SUBARU OF AMERICA, INC.
