Oil Pan and Strainer: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.
Remove the air intake duct. <Ref. to REMOVAL , Air Intake Duct.>
Remove the intercooler. <Ref. to REMOVAL , Intercooler.>
Remove the air intake boot.

Fig 1: Locating Air Intake Boot Clamps
Courtesy of SUBARU OF AMERICA, INC.
Remove the pitching stopper.

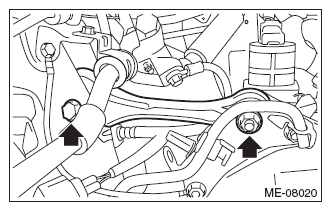

Fig 2: Locating Pitching Stopper Nut And Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator upper brackets.

Fig 3: Locating Radiator Upper Brackets Nuts
Courtesy of SUBARU OF AMERICA, INC.
Support the engine with a lifting device and wire ropes.

Fig 4: Supporting Engine With Lifting Device And Wire Ropes
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
CAUTION: When lifting up the vehicle, raise up wire ropes at the same time.
Remove the under cover. <Ref. to REMOVAL , Front Under Cover.>
Drain the engine oil. <Ref. to REPLACEMENT , Engine Oil.>
Remove the front exhaust pipe. <Ref. to REMOVAL , Front Exhaust Pipe.>
Remove the nuts which secure the engine mounting to the front crossmember.

Fig 5: Locating Engine Mounting Nuts
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which secure oil pan on cylinder block with the engine raised up.
Insert an oil pan cutter blade between cylinder block-to-oil pan clearance and remove the oil pan.
CAUTION: Do not use a screwdriver or similar tool in place of oil pan cutter.
Remove the oil strainer.
Remove the baffle plate.

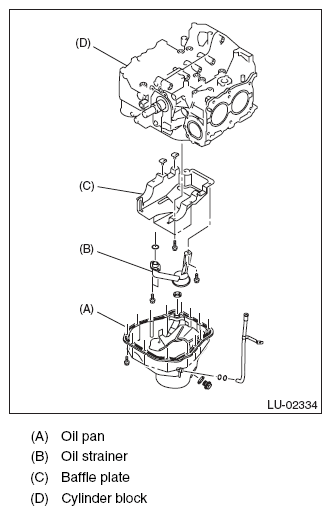

Fig 6: Identifying Oil Pan, Oil Strainer, Baffle Plate And Cylinder Block

Courtesy of SUBARU OF AMERICA, INC.
