Oil Pan and Strainer: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Before installing the oil pan, clean the mating surface of oil pan and engine block.

Make sure that the seals (A) are installed securely on the baffle plate in a direction as shown in the figure below.
NOTE: Use a new seal.

Fig 1: Identifying Seals Installation Position
Courtesy of SUBARU OF AMERICA, INC.
Install the baffle plate.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
Install the oil strainer to cylinder block.
NOTE: Use new O-rings.

Tightening torque:

10 N.m (1.0 kgf-m, 7.4 ft-lb)
Tighten the oil strainer stay together with the baffle plate.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
Apply liquid gasket to the mating surfaces of oil pan, and install the oil pan.
NOTE:
- Use a new gasket.
- Install within 5 min. after applying liquid gasket.
Liquid gasket:

THREE BOND 1217G (Part No. K0877Y0100) or equivalent

Fig 2: Identifying Liquid Gasket Applying Area On Mating Surfaces Of Oil Pan
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts which install oil pan to cylinder block.
Tightening torque:

T1: 5 N.m (0.5 kgf-m, 3.7 ft-lb)

T2: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T3: 10 N.m (1.0 kgf-m, 7.4 ft-lb)

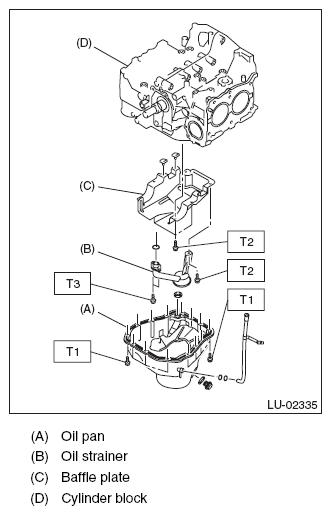

Fig 3: Identifying Oil Pan, Oil Strainer, Baffle Plate And Cylinder Block With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Lower the engine onto front crossmember.
Install the nuts which hold the engine mounting to the front crossmember.
NOTE: Use a new nut.

Tightening torque:

60 N.m (6.1 kgf-m, 44.3 ft-lb)

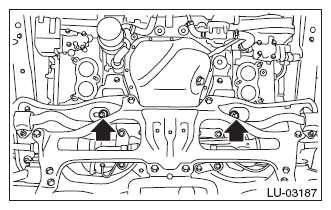

Fig 4: Locating Engine Mounting Nuts
Courtesy of SUBARU OF AMERICA, INC.
Install the front exhaust pipe. <Ref. to INSTALLATION , Front Exhaust Pipe.>
Install the under cover. <Ref. to INSTALLATION , Front Under Cover.>
Lower the vehicle.
CAUTION: When lowering the vehicle, lower the lift up device and wire ropes at the same time.
Remove the lifting device and wire ropes.

Fig 5: Supporting Engine With Lifting Device And Wire Ropes
Courtesy of SUBARU OF AMERICA, INC.
Install the pitching stopper.
Tightening torque:

T1: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

T2: 58 N.m (5.9 kgf-m, 42.8 ft-lb)

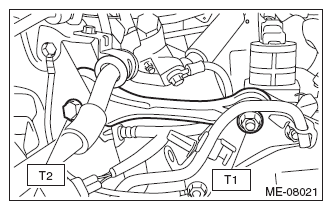

Fig 6: Identifying Pitching Stopper Bolt And Nut With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Install the radiator upper brackets.
Tightening torque:

12 N.m (1.2 kgf-m, 8.9 ft-lb)

Fig 7: Locating Radiator Upper Brackets Nuts
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake boot.
Tightening torque:

2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Fig 8: Locating Air Intake Boot Clamps
Courtesy of SUBARU OF AMERICA, INC.
Install the intercooler. <Ref. to INSTALLATION , Intercooler.>
Install the air intake duct. <Ref. to INSTALLATION , Air Intake Duct.>
Connect the battery ground terminal.
Refill the engine oil. <Ref. to REPLACEMENT , Engine Oil.>
