Oil Pump And Oil Pan

WARNING: This page is about a different variant/trim than selected.

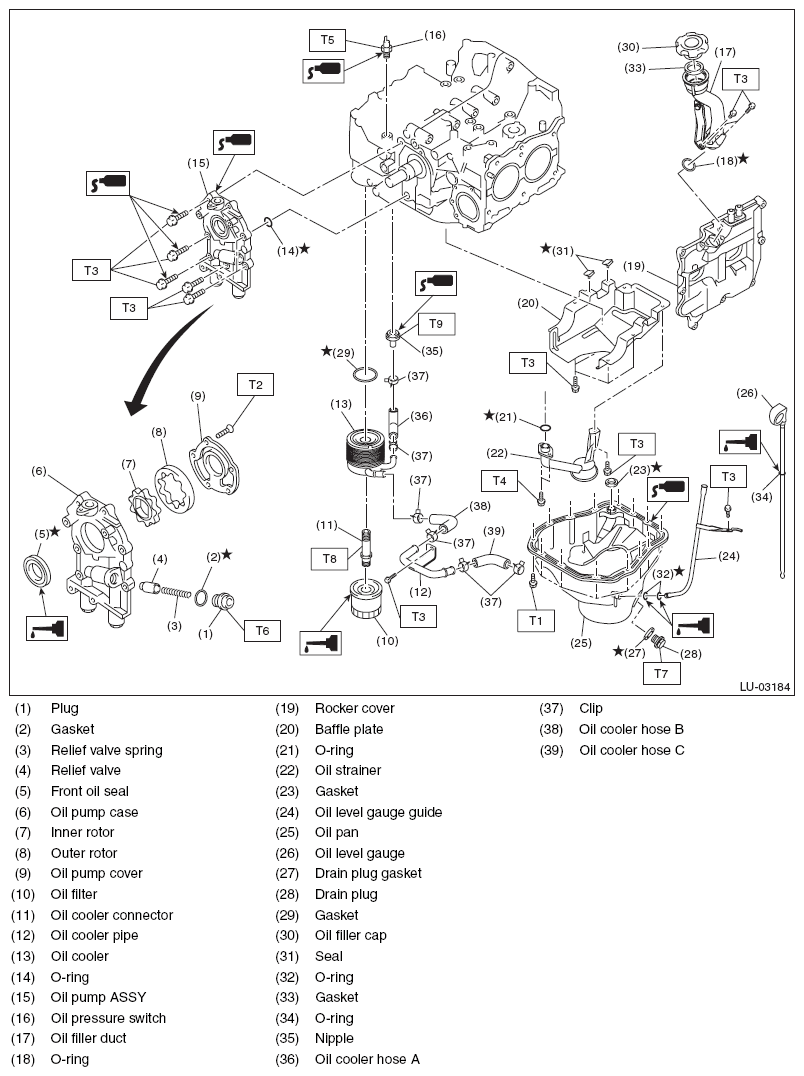

Fig 1: Exploded View Of Oil Pump And Oil Pan With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5 (0.5, 3.7)

T2: 5.4 (0.6, 4.0)

T3: 6.4 (0.7, 4.7)

T4: 10 (1.0, 7.0)

T5: 25 (2.5, 18.4)

T6: 44 (4.5, 32.5)

T7: 46.5 (4.7, 34.3)

T8: 54 (5.5, 39.8)

T9: 69 (7.0, 50.9)
