Engine Oil Cooler: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: If engine oil is spilt onto the exhaust pipe, wipe it off with cloth to avoid emission of smoke or causing a fire.
  1. Drain engine coolant. <Ref. to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.>
  2. Remove the engine oil filter. <Ref. to REMOVAL , Engine Oil Filter.>
  3. Remove the bolt (B) holding the oil cooler pipe (A) to the oil pump.
  4. Remove the oil cooler pipe (A), oil cooler hose A (C), oil cooler hose B (H), and oil cooler hose C (I).
  5. Remove the oil cooler connector (D) and oil cooler (E).

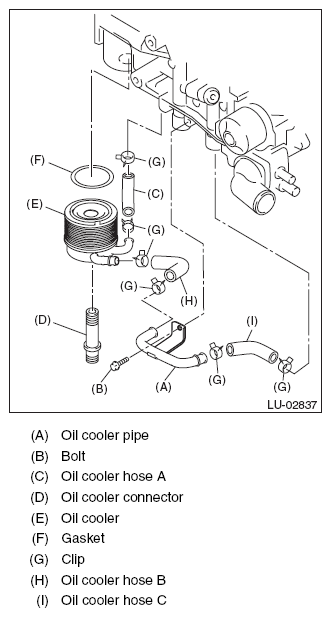

Fig 1: Identifying Engine Oil Cooler Related Components
G10265638Courtesy of SUBARU OF AMERICA, INC.
