Section 10 (Diagnostic Trouble Code (DTC) Detecting Criteria (H4DOTC) (STI))
>>
Diagnostic Trouble Code (DTC) Detecting Criteria
>>
DTC P2402 Evaporative Emission System Leak Detection Pump Control Circuit High
>>
Component Description
Component Description
WARNING:
This page is about a different variant/trim than selected.

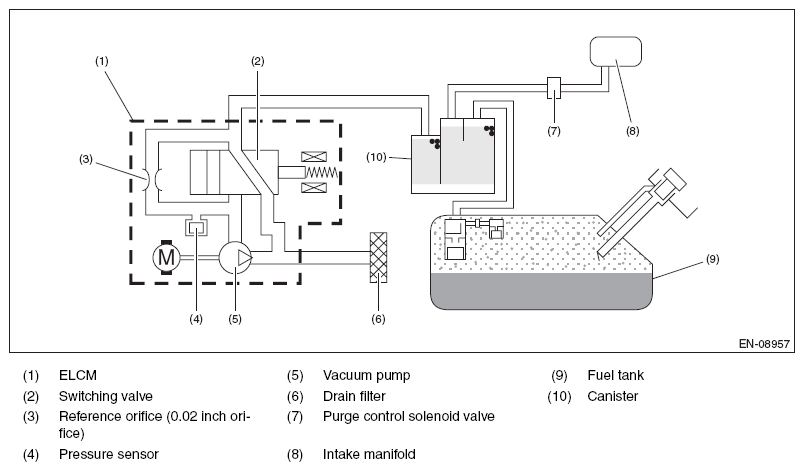

Fig 1: ELCM Vacuum Pump Circuit Diagram (High)
Courtesy of SUBARU OF AMERICA, INC.
