Radiator Fan System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

Radiator fan system <Ref. to COOLING FAN , Radiator Fan System.>

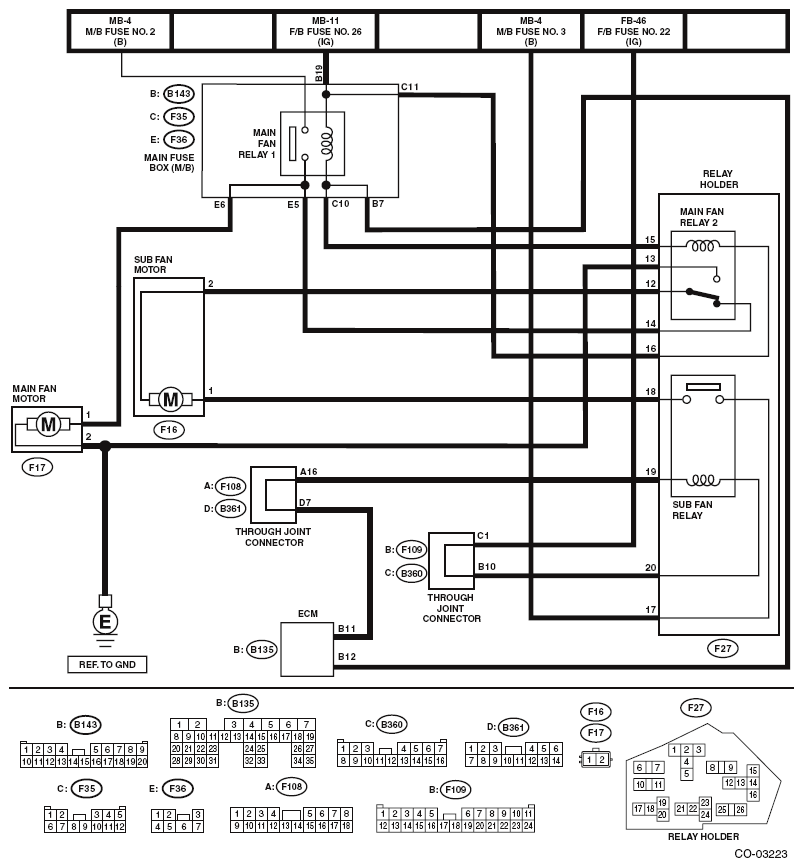

Fig 1: Radiator Fan System Wiring Diagram
G09476391Courtesy of SUBARU OF AMERICA, INC.
