Components With Torque Specifications: Turbocharger

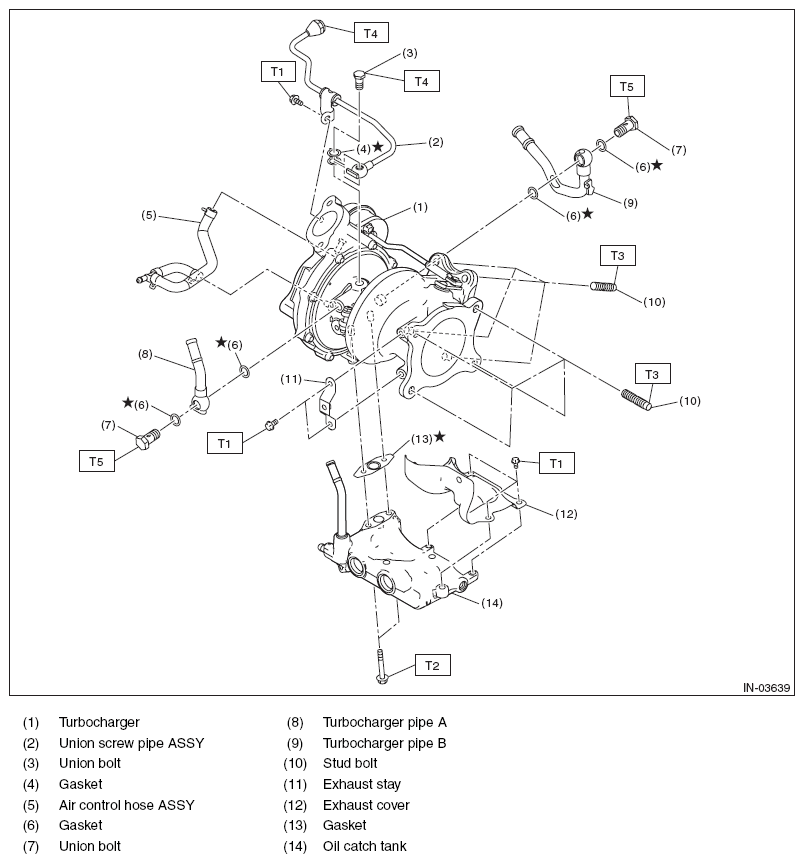

Fig 1: Exploded View Of Turbocharger

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 10.5 (1.1, 7.7)

T3: 14.7 (1.5, 10.8)

T4: 16 (1.6, 11.8)

T5: 31.5 (3.2, 23.2)
