Air Intake Boot: Installation

Install in the reverse order of removal.

NOTE: When installing the air intake boot to the vehicle, pay attention to the mounting hole position, and align the protrusion for stopping rotation of cushion to the cutout portion on the turbo duct.

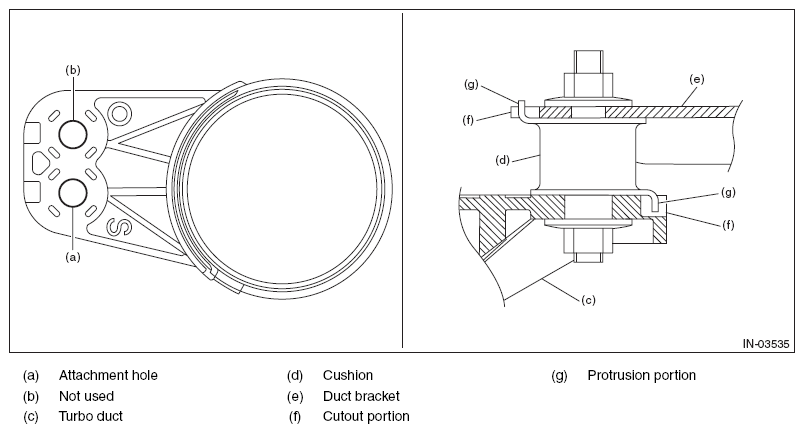

Fig 1: Aligning Protrusion For Stopping Rotation Of Cushion To Cutout Portion On Turbo Duct

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 2: Locating Duct Bracket Bolt

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 3: Locating Turbo Duct Nut

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Fig 4: Locating Air Intake Boot Clamp With Bolt

Courtesy of SUBARU OF AMERICA, INC.
