Trunk Room Trim: Removal

  1. Remove the clips, and remove the trim panel - trunk lid.

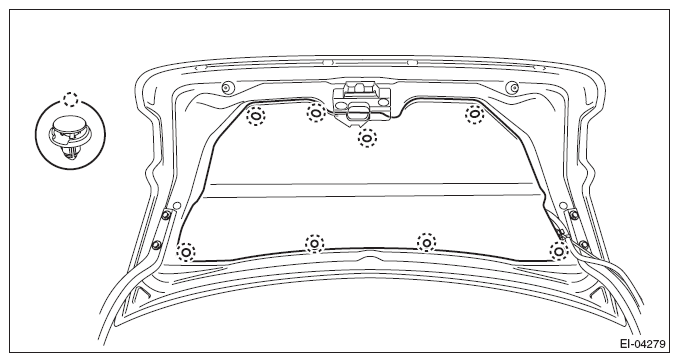

    Fig 1: Locating Trunk Lid Trim Panel Clips
    G10271250Courtesy of SUBARU OF AMERICA, INC.
  2. Tilt the backrest assembly forward.
  3. Remove the mat - trunk.
  4. Remove the trim panel - trunk rear.
    1. Remove the clip.
    2. Release the claws, and remove the trim panel - trunk rear.
    Fig 2: Locating Trunk Rear Trim Panel Clips
    G10269504Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the clips, and remove the trim panel - trunk side.
Fig 3: Locating Trunk Side Trim Panel Clips
G08319501Courtesy of SUBARU OF AMERICA, INC.
