Repair and Diagnosis
>>
Heating, Ventilation & A/C (HVAC)
>>
HVAC Control Systems
>>
HVAC System (Heater, Ventilator And A/C)
>>
Heater & Air Conditioner System (For Automatic Air Conditioning System)
>>
Parts Location
Parts Location

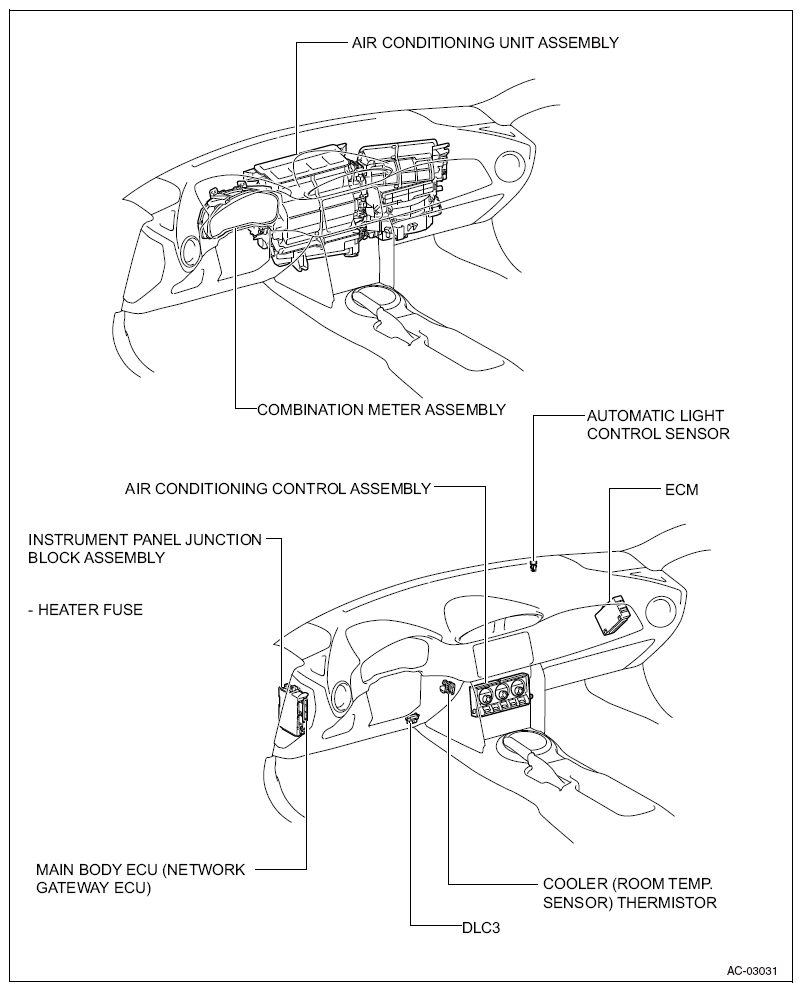

Fig 1: Identifying Heater & Air Conditioner System Parts Location [For Automatic Air Conditioning System] (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Identifying Heater & Air Conditioner System Parts Location [For Automatic Air Conditioning System] (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Identifying Heater & Air Conditioner System Parts Location [For Automatic Air Conditioning System] (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
