Air Conditioner Panel (For Manual Air Conditioning System): Removal

Removal of console box assembly (Refer to REMOVAL )
Removal of instrument cluster finish panel sub-assembly CTR (Refer to DISASSEMBLY )
Removal of instrument cluster finish panel garnish NO. 1 (Refer to DISASSEMBLY )
Removal of instrument cluster finish panel garnish NO. 2 (Refer to DISASSEMBLY )
Removal of air conditioner control assembly
1. Remove the 2 screws and release the 6 claws.

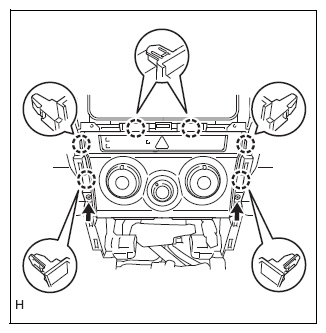

  Fig 1: Locating Screws And Claws Of Air Conditioner Control assembly
  Courtesy of SUBARU OF AMERICA, INC.
2. Disconnect the connectors, and disconnect the air conditioner control assembly.

  Fig 2: Locating Air Conditioner Control assembly Connectors
  Courtesy of SUBARU OF AMERICA, INC.
3. Release the 2 claws and disconnect the heater control cable sub-assembly. (installed on the RH side)
  NOTE: If the dial position is set to MAX HOT, it can ease replacement work of the air conditioner unit assembly because positioning can be easily performed when installing the cable.

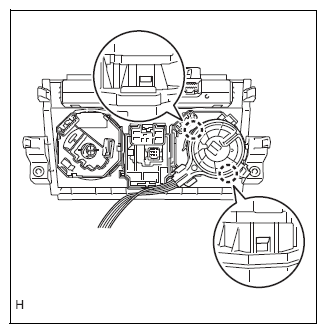

  Fig 3: Identifying Claws And Heater Control Cable sub-assembly
  Courtesy of SUBARU OF AMERICA, INC.
4. Release the 2 claws, disconnect the heater control cable sub-assembly (installed on the LH side) and remove the air conditioner control assembly.
  NOTE: If the dial position is set to DEF, it can ease replacement work of the air conditioner unit assembly because positioning can be easily performed when installing the cable.

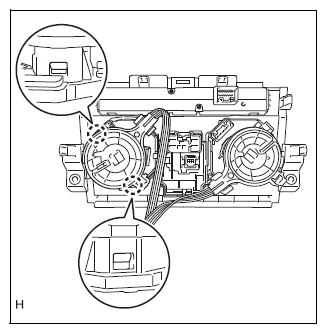

  Fig 4: Identifying Claws And Heater Control Cable sub-assembly (Installed On LH Side)
  Courtesy of SUBARU OF AMERICA, INC.
