Air Conditioner Panel (For Automatic Air Conditioning System): Removal
- Removal of console box assembly (Refer to
REMOVAL
)
- Removal of instrument cluster finish panel sub-assembly CTR (Refer to
DISASSEMBLY
)
- Removal of instrument cluster finish panel garnish NO. 1 (Refer to
DISASSEMBLY
)
- Removal of instrument cluster finish panel garnish NO. 2 (Refer to
DISASSEMBLY
)
- Removal of air conditioner control assembly
- Remove the 2 screws.

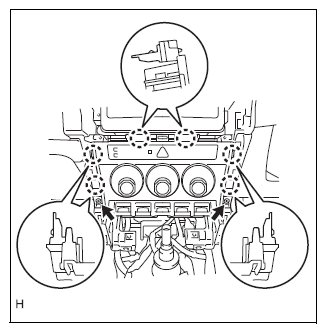

- Release the 6 tabs.
Courtesy of SUBARU OF AMERICA, INC.
- Disconnect the connectors, and disconnect the air conditioner control assembly.
Courtesy of SUBARU OF AMERICA, INC.
