Transmission Wire: Removal

WARNING: This page is about a different variant/trim than selected.

Removal of automatic transmission ASSY (Refer to REMOVAL )
Removal of transmission oil pan SUB-ASSY (ATM)
1. Remove 20 bolts to remove the transmission oil pan SUB-ASSY (ATM).
2. Remove the gasket.

  Fig 1: Locating Transmission Oil Pan Bolts
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove 3 magnets from the transmission oil pan SUB-ASSY (ATM).

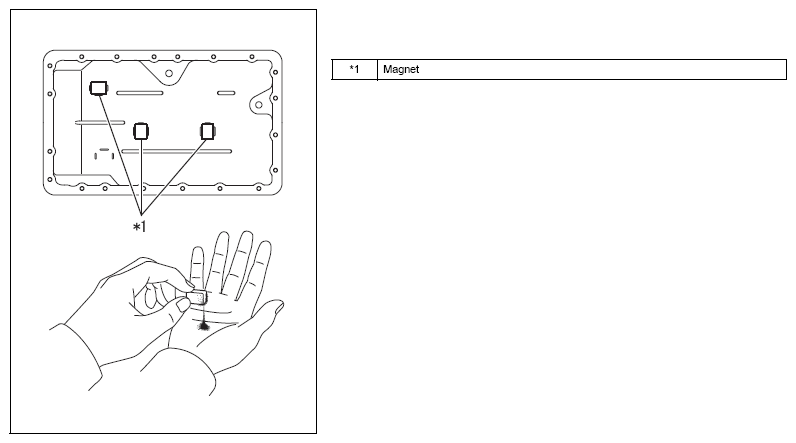

  Fig 2: Removing Magnets From Transmission Oil Pan Sub-Assy
  Courtesy of SUBARU OF AMERICA, INC.
  CAUTION:
  - Wash metal particles, sludge, etc. off the inner surface of the transmission oil pan SUB-ASSY (ATM).
  - Clean metal particles off the magnets.
  Fig 3: Locating Valve Body Oil Strainer Assy Bolts
  Courtesy of SUBARU OF AMERICA, INC.
Removal of valve body oil strainer ASSY
1. Remove 4 bolts to remove the valve body oil strainer ASSY.
  CAUTION: Set a tray under it to receive discharged transmission fluid.
2. Remove the O-ring from the valve body oil strainer ASSY.

  Fig 4: Identifying Valve Body Oil Strainer Assy O-Ring
  Courtesy of SUBARU OF AMERICA, INC.
Disconnection of transmission wire
1. Remove the bolt and lock plate, and then disconnect the oil temperature sensor from the transmission valve body ASSY.

  Fig 5: Locating Oil Temperature Sensor Bolt
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the bolt to remove the clamp from the valve body ASSY.
3. Disconnect the wiring harness from the clamp.

  Fig 6: Locating Valve Body Assy Clamp
  Courtesy of SUBARU OF AMERICA, INC.
4. Disconnect 9 connectors from each solenoid valve and disconnect the transmission wire from the transmission valve body ASSY.
  NOTE: Use a thin-tipped flat tip screwdriver for the connector indicated by the white arrow to disconnect the control solenoid connector.

  Fig 7: Locating Transmission Valve Body Assy Connectors
  Courtesy of SUBARU OF AMERICA, INC.
Removal of transmission wire
1. Disconnect the transmission wire connector.
  NOTE: Release the claw and tilt the lever downward to disconnect the connector of the transmission wire.

  Fig 8: Disconnecting Transmission Wire Connector
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the bolt and pull out the transmission wire from the transmission valve body ASSY.

  Fig 9: Locating Transmission Valve Body Assy Connector Bolt
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove the O-ring from the transmission wire connector.

  Fig 10: Identifying Transmission Wire Connector O-Ring
  Courtesy of SUBARU OF AMERICA, INC.
