Circuit Figure

WARNING: This page is about a different variant/trim than selected.

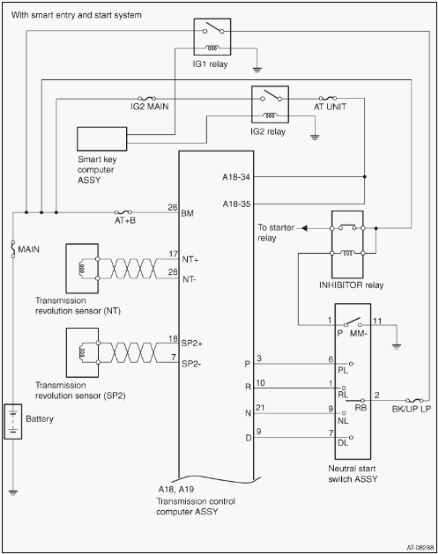

Fig 1: AT Control System (W/ Smart Entry And Start System) - Circuit Diagram (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

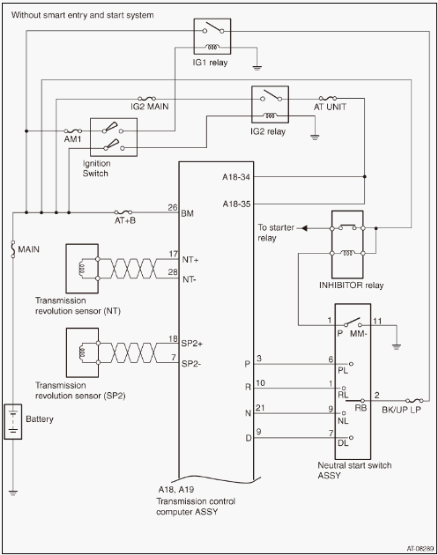

Fig 2: AT Control System (W/O Smart Entry And Start System) - Circuit Diagram (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

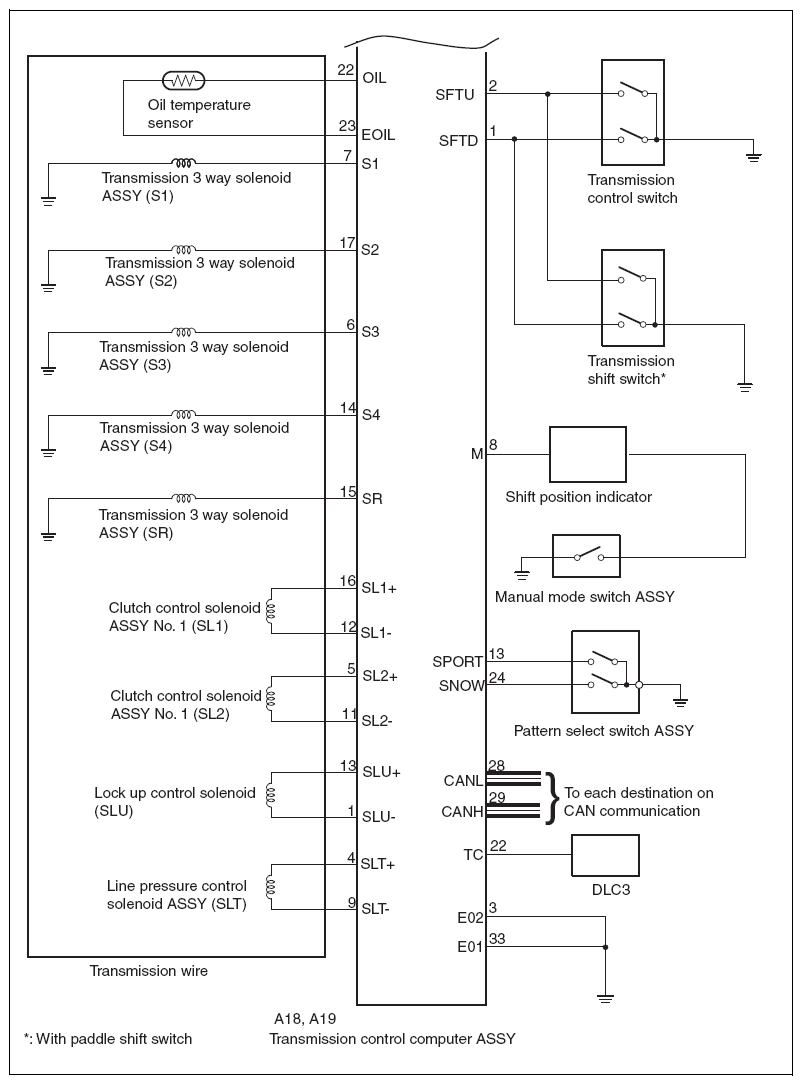

Fig 3: AT Control System - Circuit Diagram (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

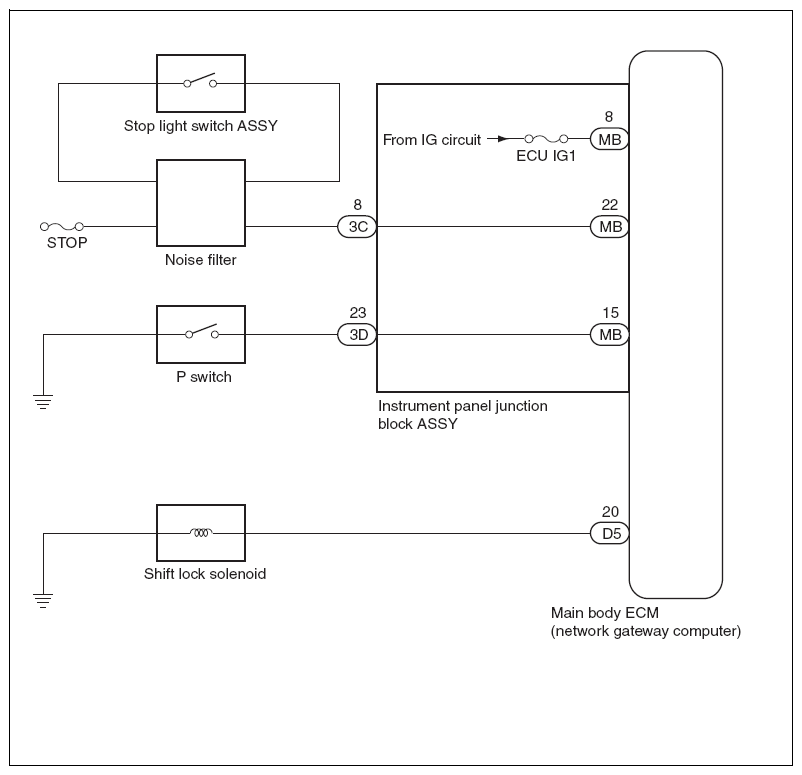

Fig 4: AT Control System - Circuit Diagram (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
