Starter ASSY (FA20): Installation

1. Install the starter ASSY to the transmission and temporarily tighten the upper mounting bolt.
   Fig 1: Locating Starter Assy To Transmission Upper Mounting Bolt

   Courtesy of SUBARU OF AMERICA, INC.
2. Lower mounting bolt tightening
   1. Tighten the lower mounting bolt A.

      Standard value: 50 N.m {510 kgf.cm} {36.9 ft.lbf}

   2. Tighten the ground cable fixing bolt B.

      Standard value: 14 N.m {143 kgf.cm} {10.3 ft.lbf}

      Fig 2: Locating Lower Mounting Bolt And Ground Cable Fixing Bolt

      Courtesy of SUBARU OF AMERICA, INC.
3. Tighten the upper mounting bolt of starter ASSY using the SST.

   SST 18283AA000

   Standard value: Specified tightening torque

   T=50N.m {510kgf.cm} {36.9ft.lbf}

   When using the SST, calculate the torque using the following formula.

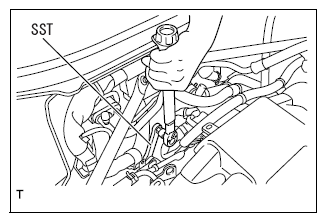

   Fig 3: Tightening Upper Mounting Bolt Of Starter Assy Using SST

   Courtesy of SUBARU OF AMERICA, INC.
   FORMULA: T2 = L2/(L1 + L2) X T1



   T1	50 N.m
   T2	Tightening torque
   L1	Length of SST [0.085 m]
   L2	Torque wrench length [m]

   NOTE:

   • This torque value is valid when the SST and torque wrench are aligned on a line.
   • Attach the SST and torque wrench so that they are alined on a line.
4. Install the wiring harness clamp.
5. Connect the connector and terminal to the starter ASSY.

Standard value: T=6.0N.m {61kgf.cm} {4.4ft.lbf}
