Description Of Functions
- Multi display
- Multi display flowchart

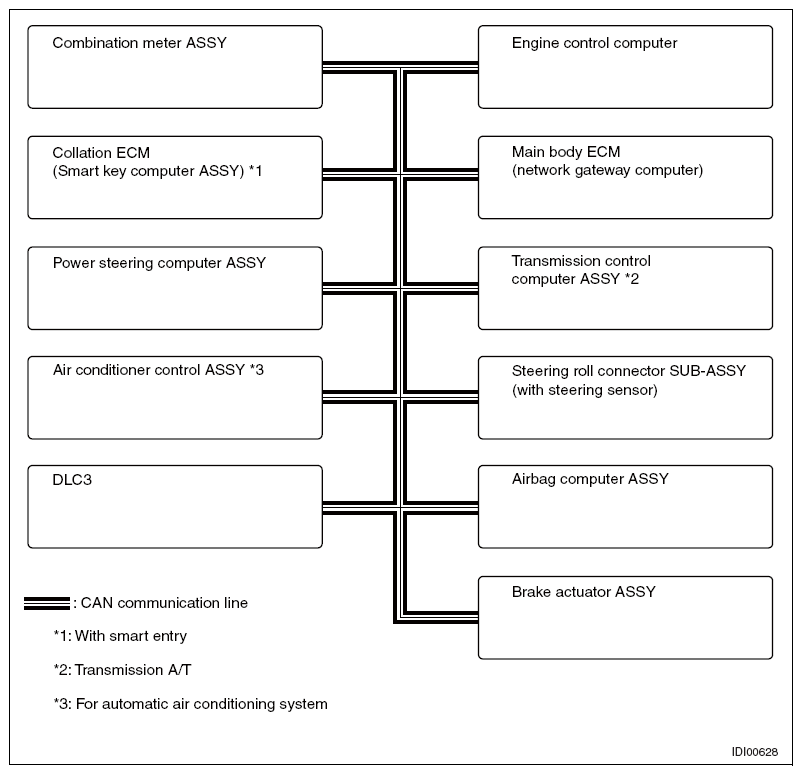

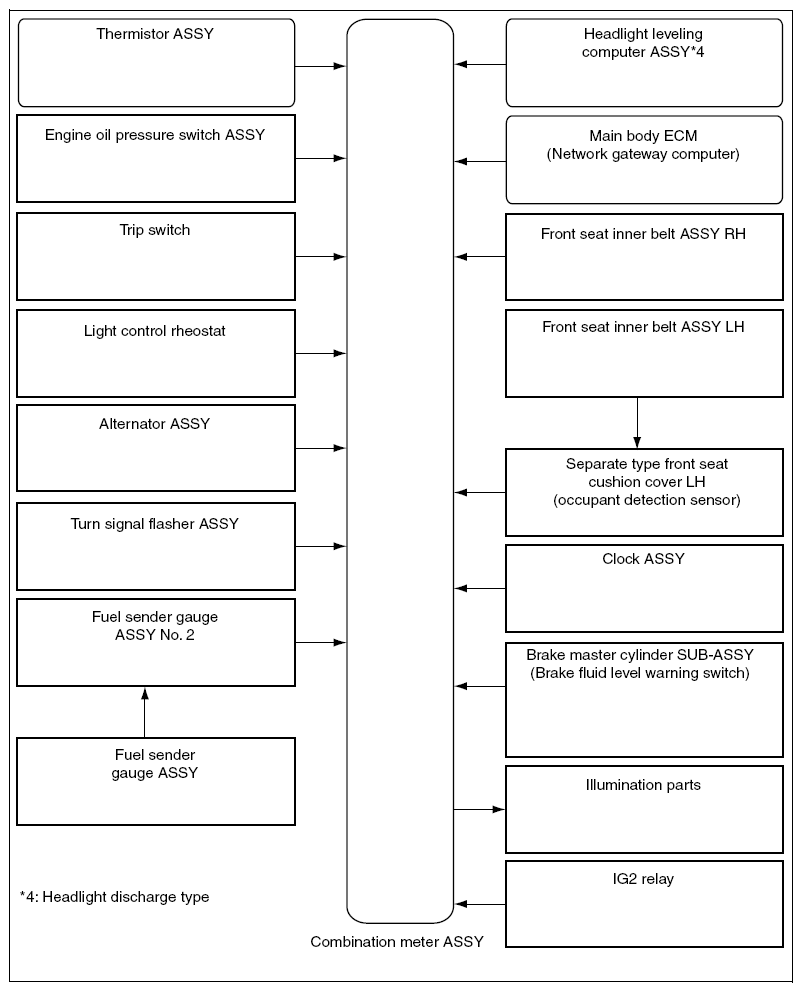

Captions in illustration

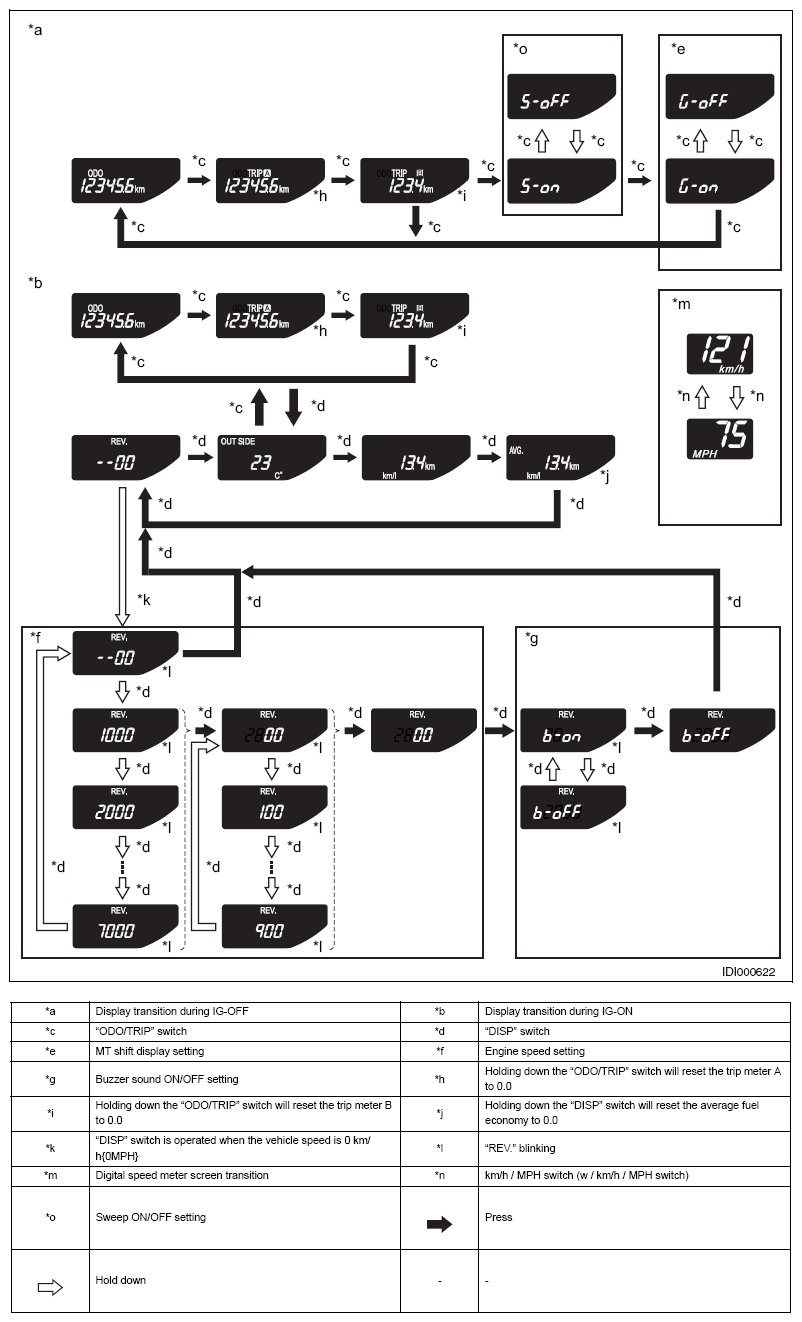

- Multi display flowchart
- Drive signal
- Various signals are input and output via CAN communication or direct wires in order to drive the indicator lights, warning lights, buzzers, and drive monitor in the combination meter ASSY.
METER/GAUGEMeter/gauge name Behavior Input/Output Signal CAN/hardwired Transmitting ECM Speed meter Movement of indicator pointer Input Vehicle speed signal CAN Brake actuator ASSY Tachometer Movement of indicator pointer Input Engine speed signal CAN Engine control computer Fuel receiver gauge Movement of indicator pointer Input Fuel consumption CAN Engine control computer Remaining fuel level Hardwired Fuel sender gauge ASSY Fuel sender gauge ASSY NO. 2 Vehicle speed signal CAN Brake actuator ASSY Shift position information signal Transmission control computer Parking brake information signal Main body ECM (Network gateway computer) Water temperature receiver gauge Movement of indicator pointer Input Coolant temperature signal CAN Engine control computer INDICATOR/WARNING LIGHTLight name Behavior Input/Output Signal CAN/hardwired Transmitting ECM Front fog indicator light (1) ON Input Front fog light lighting signal CAN Main body ECM (Network gateway computer) Turn indicator light Blink Input Turn right/left blinking signal Hardwired Turn signal flasher ASSY Rear fog indicator light (2) ON Input Rear fog light lighting signal CAN Main body ECM (Network gateway computer) Door warning light ON Input D seat courtesy SW signal P seat courtesy SW signal Luggage courtesy SW signal CAN Main body ECM (Network gateway computer) BEAM indicator light ON Input Head light HI lighting signal CAN Main body ECM (Network gateway computer) AUTO LEVELING warning light (3) ON Input Level error signal Hardwired Head light leveling computer ASSY Security indicator light Blink Input Armed state signal Hardwired Main body ECM (Network gateway computer) ON Armed state signal Alarm preparation state signal Smart key indicator light (green) (4) Blink Input CAN Collation ECM (Smart key computer ASSY) ON Key collation complete (engine can be started) Smart key indicator light (yellow) (4) Blink Input Smart system alarm signal CAN Collation ECM (Smart key computer ASSY) ON No key in vehicle alarm signal REV indicator light (5) ON Input Engine speed signal CAN Engine control computer SLIP indicator light Blink Input SLIP indicator light blinking signal CAN Brake actuator ASSY ON SLIP indicator light lighting signal ABS warning light Blink Input ABS warning light blinking signal CAN Brake actuator ASSY ON ABS warning light lighting signal Driver's seat belt warning light Blink Input D seat buckle SW signal Hardwired Front seat inner belt ASSY RH Charge warning light ON Input Generator L terminal Hardwired Generator ASSY Oil pressure warning light ON Input Engine oil pressure drop signal Hardwired Engine oil pressure switch ASSY Check engine warning light ON Input Check engine warning light lighting signal CAN Engine control computer SPORT indicator light (6) ON Input Sport mode indicator lighting signal CAN Transmission control computer ASSY SNOW indicator light (6) ON Input Snow mode indicator lighting signal CAN Transmission control computer ASSY AT oil temperature warning light (6) ON Input AT oil temperature warning light lighting signal CAN Transmission control computer ASSY Brake warning light ON Input Brake oil level warning signal Hardwired Brake fluid level switch Parking brake SW signal CAN Main body ECM EBD signal CAN Brake actuator ASSY TRC OFF indicator light ON Input TRC OFF indicator lighting signal CAN Brake actuator ASSY VSC OFF indicator light ON Input VSC OFF indicator lighting signal CAN Brake actuator ASSY VSC SPORT indicator light ON Input VSC SPORT indicator lighting signal CAN Brake actuator ASSY Airbag warning light Blink Input Airbag warning light blinking signal CAN Airbag computer ASSY ON Airbag warning light lighting signal - Diagnosis mode signal EPS warning light Blink Input EPS warning light blinking signal CAN Power steering computer ASSY ON EPS warning light lighting signal Fuel level warning light ON Input Fuel level signal Hardwired Fuel sender gauge ASSY Fuel sender gauge ASSY NO. 2 (1) When there are front fog lights (2) When there is a rear fog light (3) Head light discharge type (4) With smart entry (5) With digital speed meter (6) Automatic transmission (7) With cruise control system BUZZERBuzzer Behavior Input/Output Signal CAN/hardwired Transmitting ECM Reverse buzzer (1) Intermittent beep Input Shift position R signal CAN Main body ECM Driver's seat belt buzzer Intermittent beep Input Vehicle speed signal CAN Brake actuator ASSY Shift position R signal Main body ECM D seat buckle SW signal Hardwired Front seat inner belt ASSY RH EPS buzzer Single short beep Input EPS warning light signal CAN Power steering computer ASSY Smart key buzzer (2) Single short beep Input Meter buzzer single short beep signal CAN Collation ECM (Smart key computer ASSY) Intermittent beep Meter buzzer intermittent beep signal Continuous beep Meter buzzer continuous beep signal Key reminder (3) Intermittent beep Input Buzzer sound signal CAN Main body ECM (Network gateway computer) Immobilizer key collation completion notification buzzer (2) Single short beep Input Immobilizer key collation completion notification signal CAN Collation ECM (Smart key computer ASSY) Sport reject buzzer (1) Double short beeps Input Reject buzzer signal CAN Transmission control computer ASSY REV buzzer (4) Single short beep Input Engine speed signal CAN Engine control computer Light reminder Continuous beep Input IG signal Hardwired IG2 relay Buzzer sound signal CAN Main body ECM (Network gateway computer) (1) Automatic transmission (2) With smart entry (3) Without smart entry (4) With digital speed meter MULTI DISPLAYMonitor name Behavior Input/Output Signal CAN/hardwired Transmitting ECM Odo/trip meter Numeral value display Input Vehicle speed pulse signal integration value signal Vehicle speed signal CAN Brake actuator ASSY Odo/trip SW signal Hardwired Trip switch A/T shift position (1) Display Input Shift position P signal
Shift position R signal
Shift position N signal
Shift position D signal
Shift position number signal (1 to 6)
Mode indicator signalCAN Transmission control computer ASSY Shift (up) indicator (1) Display Input Gear position number signal CAN Transmission control computer ASSY Shift (down) indicator (1) Display Input Gear position number signal CAN Transmission control computer ASSY M/T shift position (2) Display Input Gear position number signal CAN Engine control computer ASSY MT shift (upper) (2) Display Input Shift up signal CAN Engine control computer ASSY Ambient temperature Display Input Vehicle speed signal CAN Brake actuator ASSY Ambient temperature sensor input Hardwired Thermistor ASSY Average fuel economy Display Input Engine speed signal
Fuel injection quantity signalCAN Engine control computer Vehicle speed signal
Vehicle speed pulse signal integration value signalCAN Brake actuator ASSY Instantaneous fuel economy Display Input Engine speed signal
Fuel injection quantity signalCAN Engine control computer Vehicle speed pulse signal integration value signal
Vehicle speed signalBrake actuator ASSY Digital speed meter (3) Numeral value display Input Vehicle speed signal CAN Brake actuator ASSY (1) Automatic transmission (2) Transmission M/T (3) With digital speed meter
