Combination Meter ASSY: Removal

Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
Removal of instrument cluster finish panel SUB-ASSY CTR (Refer to DISASSEMBLY )
Removal of the meter hood SUB-ASSY (Refer to DISASSEMBLY )
Removal of the instrument panel meter ornament UPR (Refer to DISASSEMBLY )
Removal of the combination meter ASSY
1. Remove the 2 screws.
2. Pull the hook at the bottom of the combination meter ASSY to release two clips and pull it out toward the rear.
  Captions in illustration

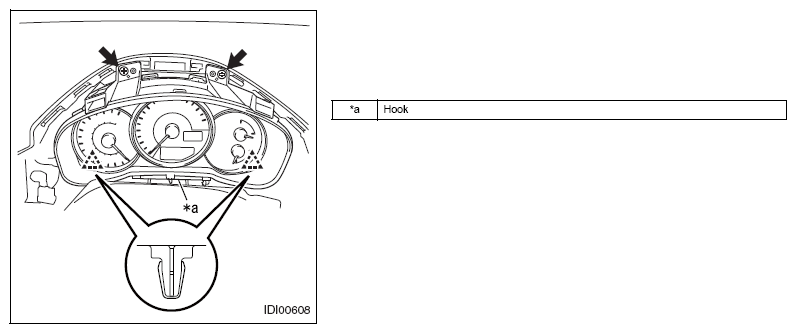

  Fig 1: Locating Combination Meter Assembly Hooks And Screws
  Courtesy of SUBARU OF AMERICA, INC.
3. Disconnect the connector and remove the combination meter ASSY.

  Fig 2: Locating Combination Meter Assembly Connector
  Courtesy of SUBARU OF AMERICA, INC.
