Fuel Receiver Gauge Malfunction
>>
Circuit figure
Circuit figure

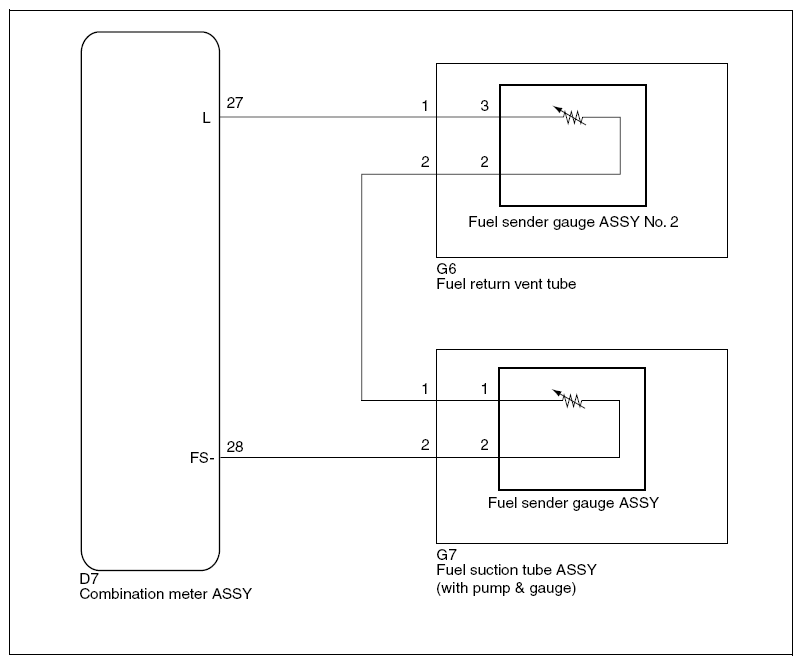

Fig 1: Fuel Receiver Gauge - Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
